Delta Sucker Rod & Pulling Unit :No.(D-DE-001 )

380 HP MENCARELLI Pulling Unit for Sucker Rod Jobs

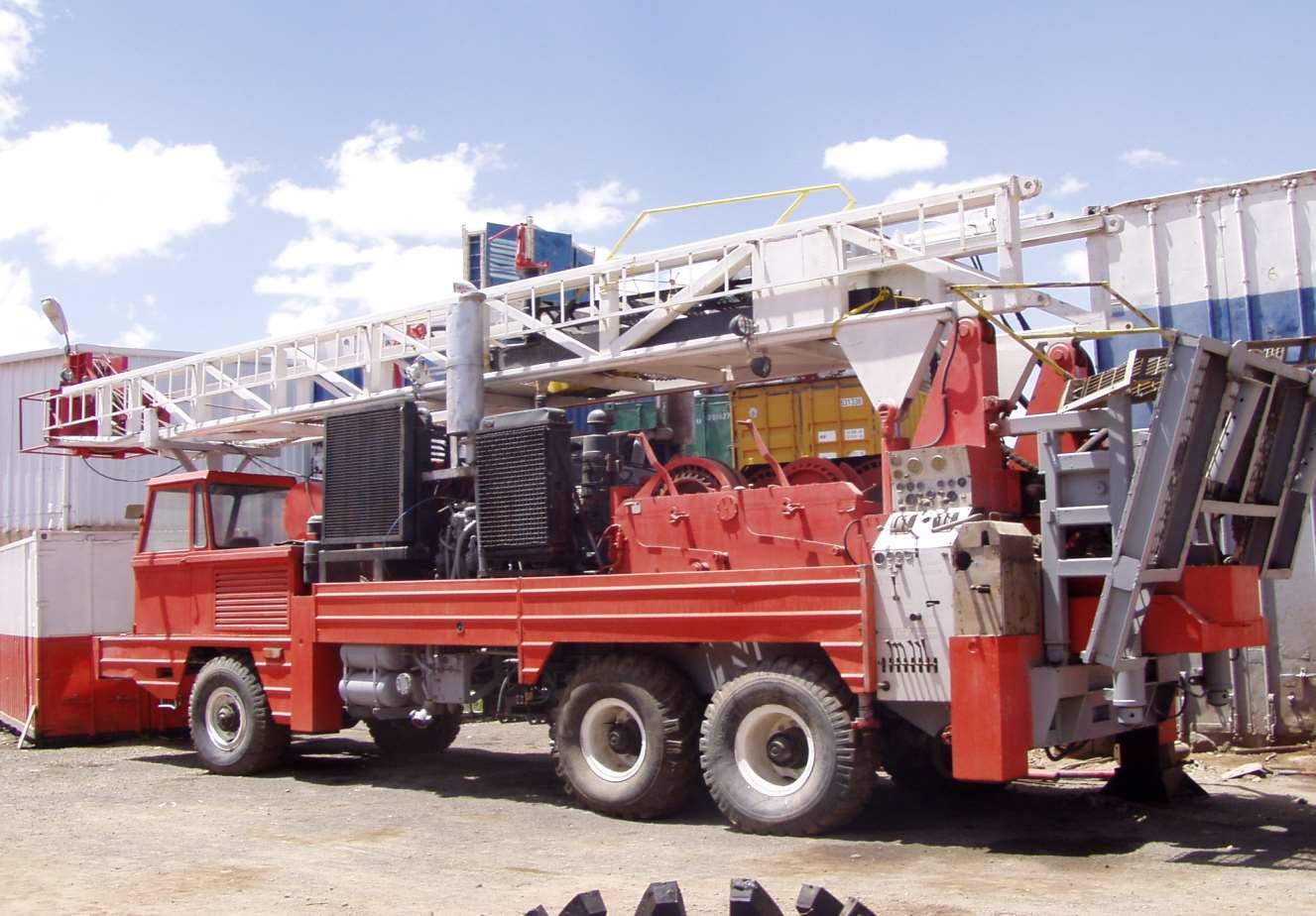

Delta Sucker Rod & Pulling Unit No. (D-DE-001): is a self contained, self propelled, and fast moving unit, Mencarelli – Italian manufactured used for sucker rod Pulling and Running Operations, which can be used for shallow wells, as well pumps pulling.
This unit combines maximum mobility even in desert areas and boulders strewn valleys with superlative depth capacity to 2000 meters.

Racking board will enable the crew to rack back on derrick sucker rod joints; operation will be quicker than laying down sucker rods on racks.

Associated Handling Tools and BOP's: The unit will be furnished with:
- Sucker Rod Power &Manual Tongs.
- Sucker rod Elevators for all sucker rod sizes.
- Variable Ram size sucker rod BOP’s.

Small pump mounted: will be used for filling the well and perform function and pressure test if required.

Features

• • Two Diesel Engines for more reliable hydraulic power to rig components.
• • 6 x 6 carriers with independent V-8 Deutz diesel Engine.
• • Quick rig up at site with two hydraulically operated masts rams.
• • Double Drum Draw work.
• • Two Hook Blocks: One main and one auxiliary hook blocks.
• • Two Sucker Rod Racking Boards.
• • Rebuilt in 2012.

Engine Specifications:

• • Working Horsepower:
• • Engine # 1 V8, 380 HP @ 2300 RPM
• • Engine # 2 V6, 263 HP @ 2300 RPM
